Description:

1.PS701 is a diagnostic tool for all Japanese cars, can diagnose TOYOTA, HONDA, MITSUBISHI, SUBARU, SUZUKI, MAZDA and NISSAN;

2.PS701 can test for all electronic control systems not just for OBD2 engine system;

3.PS701 can be comparable with the original equipment in some degree and can do matching keys for most cars.

Illustration of PS701:

1. PS701 can test
TOYOTA, the testing manual is as follows:

2. PS701 can test SUZUKI, the testing manual is as follows:

3. PS701 can test SUBARU, the testing manual is as follows:

4. PS701 can test NISSAN automotively or check by manual ,the testing manual is as follows:

5. PS701 can test MITSUBISHI, include Asian and European/American cars, the testing manual is as follows:

6. PS701 can test MAZDA, the testing manual is as follows:

7. PS701 can test HONDA, the testing manual is as follows:

One example for TOYOTA diagnosis:

In the diagnosis menu, select [TOYOTA] menu can be diagnosed on the TOYOTA models.

Confirmation screen will show the configuration menu selection interface CANBUS, according to the vehicle's configuration menu.

 [WITHOUT CANBUS] menu to select example, into the display system will be classified according to the need for choice.

 To select the ENGINE system, for example, select and press [ENTER] key.

If the communication is normal, the screen will display the system diagnostics menu.

  Select Read fault code, the screen will display the fault code read out the number, if the system does not have fault code stored, the screen displays the system to normal or no fault code.

 Press [ENTER] key can be individually read fault codes and fault code definition.

 Then you can troubleshoot the content of trouble code out.

 Select Clear fault codes menu for the system to clear the fault codes stored.

Clear the fault code feature selection screen will display to confirm the clear trouble code, clear fault code if the confirmation, press[ENTER] key.

 Press [ENTER], the screen will display fault code cleared successfully. Then if we read the trouble code also shows a fault code stored there is currently no solution is the fault, the need for vehicle maintenance.

 Select Read data stream real-time data can be read, the function is to determine the fault for further important function.

Confirmation screen will display the data stream after the menu options.

Need to read the data stream in the position of press [ENTER] key to select to read the data before the data items with "*" were selected to read.

Choosing a data item to read, press [ESC] key.

 If the communication is normal, the screen will display to read out the data stream.

 By press the left, right page can view the data stream.

Package:

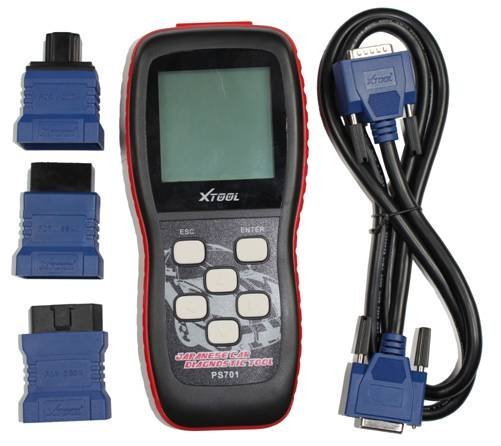

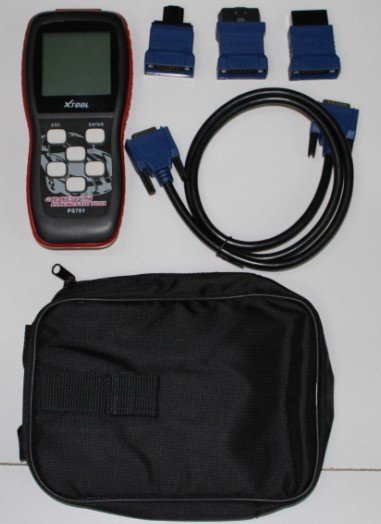

1. machine composition:
    mainframe,
    main testing cables,

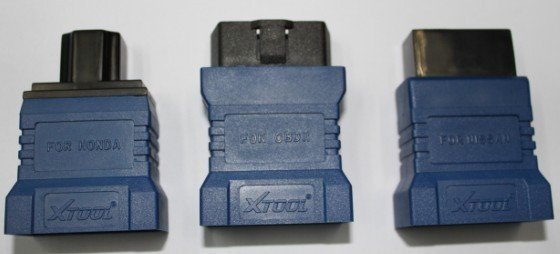

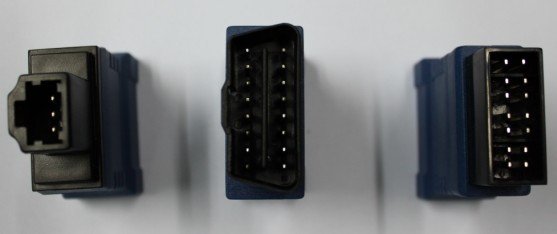

    testing connectors: NISSAN 14PIN (old car version); Honda 3pin(old car version) and obd2 connector),
    user's manual and Nynon bag
2. overall size: 36×20×10cm
3. weight:1.5KG

Specifications:

1. Display: Backlit, 160 x160 pixel display with contrast adjustment
2. Operating Temperature: 0 to 50°C (32 to 122 F°)
3. Storage Temperature: -20 to 70°C (-4 to 158 F°)
4. relative humidity: <90%
5. External Power: 12.0v Volts provided via vehicle battery
6. mainframe power: 8W
7. Mainframe dimensions: 225mm Length 98mm Width  36mm Height
8. exterior memory: supports TF card

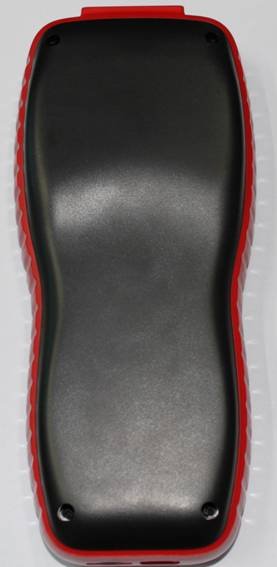

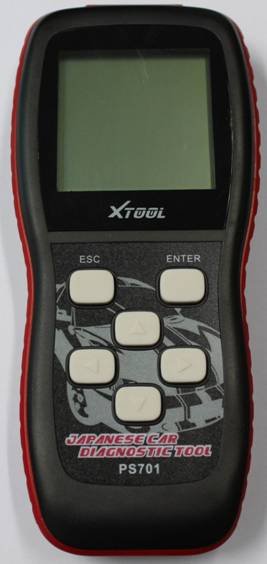

More Pictures:
